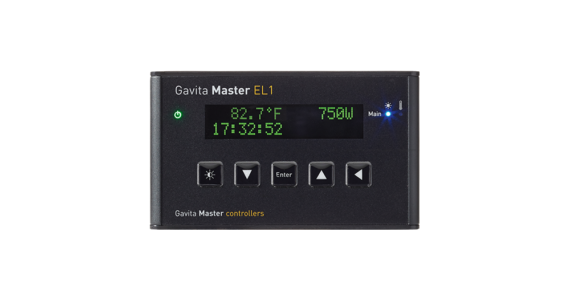

Master controller EL1 – Gen 1
Master controller EL1 – Gen 1
Lighting control at your finger tips! The industry standard controller for e-series fixtures. The Master Controller EL1 is our entry level system for controlling e-series fixtures centrally. It is a single port controller for a single room. Now you can switch, dim and boost all your fixtures from a central point, while safeguarding your crop with the advanced temperature safety features. Installation is plug-and-play using the cables and splitters that are included with the controller and the e-series fixtures. There is a wide range of original Gavita accessories available, ranging from a booster to expand the number of fixtures with 200 fixtures each, to cables, splitters and long lead temperature sensors.
Specifications
| 24 hour timer (on/off) | Yes |
|---|---|
| Set output level | 50-115% |
| Select ballast type | 400/600/750/1000W |
| Show output as W or % | Yes |
| Auto-dim at set temp | Yes |
| Auto shutdown at set temp | Yes |
| Sunrise / sunset period | Yes |
| Outputs | 1 (main) |
| Number of ballasts per output | 40 |
| Total number of ballasts | 40 |
| Temperature sensors | 1 (main) |
| Alarm contacts NO/NC | - |
| External Contactor Modules (ECM) | - |
| Warranty | 3 years |
| Article Number | 60.55.00.23.10 (EU) | 60.55.00.24.11 (UK) | 60.55.00.12.20 (US) | 60.55.00.24.60 (AU) |
| EAN code | 8718403051735 (EU) | 8718403051759 (UK) | 8718403051773 (US) | 8718403051797 (AU) |
- 24 hour timer (on/off) Yes
- Set output level 50-115%
- Select ballast type 400/600/750/1000W
- Show output as W or % Yes
- Auto-dim at set temp Yes
- Auto shutdown at set temp Yes
- Sunrise / sunset period Yes
- Outputs 1 (main)
- Number of ballasts per output 40
- Total number of ballasts 40
- Temperature sensors 1 (main)
- Alarm contacts NO/NC -
- External Contactor Modules (ECM) -
- Warranty 3 years
- Article Number 60.55.00.23.10 (EU) | 60.55.00.24.11 (UK) | 60.55.00.12.20 (US) | 60.55.00.24.60 (AU)
- EAN code 8718403051735 (EU) | 8718403051759 (UK) | 8718403051773 (US) | 8718403051797 (AU)
Specifications
| 24 hour timer (on/off) | Yes |
|---|---|
| Set output level | 50-115% |
| Select ballast type | 400/600/750/1000W |
| Show output as W or % | Yes |
| Auto-dim at set temp | Yes |
| Auto shutdown at set temp | Yes |
| Sunrise / sunset period | Yes |
| Outputs | 1 (main) |
| Number of ballasts per output | 40 |
| Total number of ballasts | 40 |
| Temperature sensors | 1 (main) |
| Alarm contacts NO/NC | - |
| External Contactor Modules (ECM) | - |
| Warranty | 3 years |
| Article Number | 60.55.00.23.10 (EU) | 60.55.00.24.11 (UK) | 60.55.00.12.20 (US) | 60.55.00.24.60 (AU) |
| EAN code | 8718403051735 (EU) | 8718403051759 (UK) | 8718403051773 (US) | 8718403051797 (AU) |
- 24 hour timer (on/off) Yes
- Set output level 50-115%
- Select ballast type 400/600/750/1000W
- Show output as W or % Yes
- Auto-dim at set temp Yes
- Auto shutdown at set temp Yes
- Sunrise / sunset period Yes
- Outputs 1 (main)
- Number of ballasts per output 40
- Total number of ballasts 40
- Temperature sensors 1 (main)
- Alarm contacts NO/NC -
- External Contactor Modules (ECM) -
- Warranty 3 years
- Article Number 60.55.00.23.10 (EU) | 60.55.00.24.11 (UK) | 60.55.00.12.20 (US) | 60.55.00.24.60 (AU)
- EAN code 8718403051735 (EU) | 8718403051759 (UK) | 8718403051773 (US) | 8718403051797 (AU)
Features & Benefits
Switch, dim and boost centrally
Now you have complete control over the light cycle and the output of your fixtures from one single point. Never reach to a ballast again!
Easy installation
The complete installation is plug-and-play. Every e-series fixture comes with all necessary cables to install it on the e-series control bu
Simple programming
Setting up the controller is a breeze, with a 5 language text interface in plain language on a high quality OLED display.
Crop safety - autodim
In extreme conditions the Master Controller automatically dims your lights, so your plants will survive the high heat.
Crop protection – auto-shutdown
When cooling or ventilation fails, the Master Controller automatically switches off your lights, preventing imminent damage to your crop (or worse).
Extra signaling LEDs
In a glance you can see the status of your lights and alarms by the blue and red signaling LEDs. No need to read the status screen. Alarms will even be remembered.
Sunrise/sunset
To prevent for example climate (humidity) problems at the end of the cycle you can program a sunrise/sunset period.
Controls 1-600 ballasts
Whether you use it on one light for convenience and crop safety, or in large climate rooms that have hundreds of lights, the EL1 can handle it! 40 ballasts can be connected to the output port, but by using 3 B200 boosters you increase the output capacity to 600 ballasts!
Switch, dim and boost centrally
Now you have complete control over the light cycle and the output of your fixtures from one single point. Never reach to a ballast again!
Easy installation
The complete installation is plug-and-play. Every e-series fixture comes with all necessary cables to install it on the e-series control bu
Simple programming
Setting up the controller is a breeze, with a 5 language text interface in plain language on a high quality OLED display.
Crop safety - autodim
In extreme conditions the Master Controller automatically dims your lights, so your plants will survive the high heat.
Crop protection – auto-shutdown
When cooling or ventilation fails, the Master Controller automatically switches off your lights, preventing imminent damage to your crop (or worse).
Extra signaling LEDs
In a glance you can see the status of your lights and alarms by the blue and red signaling LEDs. No need to read the status screen. Alarms will even be remembered.
Sunrise/sunset
To prevent for example climate (humidity) problems at the end of the cycle you can program a sunrise/sunset period.
Controls 1-600 ballasts
Whether you use it on one light for convenience and crop safety, or in large climate rooms that have hundreds of lights, the EL1 can handle it! 40 ballasts can be connected to the output port, but by using 3 B200 boosters you increase the output capacity to 600 ballasts!
Features & Benefits
Switch, dim and boost centrally
Now you have complete control over the light cycle and the output of your fixtures from one single point. Never reach to a ballast again!
Easy installation
The complete installation is plug-and-play. Every e-series fixture comes with all necessary cables to install it on the e-series control bu
Simple programming
Setting up the controller is a breeze, with a 5 language text interface in plain language on a high quality OLED display.
Crop safety - autodim
In extreme conditions the Master Controller automatically dims your lights, so your plants will survive the high heat.
Crop protection – auto-shutdown
When cooling or ventilation fails, the Master Controller automatically switches off your lights, preventing imminent damage to your crop (or worse).
Extra signaling LEDs
In a glance you can see the status of your lights and alarms by the blue and red signaling LEDs. No need to read the status screen. Alarms will even be remembered.
Sunrise/sunset
To prevent for example climate (humidity) problems at the end of the cycle you can program a sunrise/sunset period.
Controls 1-600 ballasts
Whether you use it on one light for convenience and crop safety, or in large climate rooms that have hundreds of lights, the EL1 can handle it! 40 ballasts can be connected to the output port, but by using 3 B200 boosters you increase the output capacity to 600 ballasts!
Switch, dim and boost centrally
Now you have complete control over the light cycle and the output of your fixtures from one single point. Never reach to a ballast again!
Easy installation
The complete installation is plug-and-play. Every e-series fixture comes with all necessary cables to install it on the e-series control bu
Simple programming
Setting up the controller is a breeze, with a 5 language text interface in plain language on a high quality OLED display.
Crop safety - autodim
In extreme conditions the Master Controller automatically dims your lights, so your plants will survive the high heat.
Crop protection – auto-shutdown
When cooling or ventilation fails, the Master Controller automatically switches off your lights, preventing imminent damage to your crop (or worse).
Extra signaling LEDs
In a glance you can see the status of your lights and alarms by the blue and red signaling LEDs. No need to read the status screen. Alarms will even be remembered.
Sunrise/sunset
To prevent for example climate (humidity) problems at the end of the cycle you can program a sunrise/sunset period.
Controls 1-600 ballasts
Whether you use it on one light for convenience and crop safety, or in large climate rooms that have hundreds of lights, the EL1 can handle it! 40 ballasts can be connected to the output port, but by using 3 B200 boosters you increase the output capacity to 600 ballasts!
More information
Easy
The Master Controllers are extremely easy to set-up. The two-line green OLED display is sharp and easy to read, even in a high light intensity environment, and all menu items are in plain text. The 4-button control of the menu system is intuitive. A special fifth button is added to directly set the output of your fixtures. Red and blue LEDs show you the output status of your controller ports, and give you a quick view of any error indications.
The wiring system is plug-and-play, with all the cables you need already included with each e-series fixture. You can find more information on how to connect your fixtures to our controller here: Single Bus vs. Repeater Bus. The manual also describes how you can make bespoke cables for any length. Different lengths of control cables are also available as original Gavita accessories.
The wiring system is plug-and-play, with all the cables you need already included with each e-series fixture. The manual also describes how you can make bespoke cables for any length. Different lengths of control cables are also available as original Gavita accessories.
The mounting of the controller in a bracket makes it easy to mount. Two screws are all you need to install the mounting bracket, the controller clicks right in. This also enables you easy access to the wiring at the bottom of the controller.
Safe
The most important and valued safety features on the Master controller are the temperature safety features: Your lamps will automatically dim when your climate control is no longer able to maintain the correct temperature, or will even shut down your lamps when a maximum temperature is reached, safeguarding your crop. These features have save many a crop already!
The control signal is a safe analog low voltage signal, and the controller is protected from signal shortcuts in the wiring. Wiring faults do not kill your controller.
Flexible
Whether you control 2 fixtures of 400: the Master Controller EL1 will do the job, when adding the booster modules you need. Standard, the EL1 output can steer 40 fixtures. For large rooms or distant placement we have temperature probes with a long lead available.
Sexy
The anodized aluminum extrusion housing is rugged and compact. No more standard grey plastic installation boxes with cluttered buttons and lights: the controller is compact, clean and some even find it sexy.
More information
Easy
The Master Controllers are extremely easy to set-up. The two-line green OLED display is sharp and easy to read, even in a high light intensity environment, and all menu items are in plain text. The 4-button control of the menu system is intuitive. A special fifth button is added to directly set the output of your fixtures. Red and blue LEDs show you the output status of your controller ports, and give you a quick view of any error indications.
The wiring system is plug-and-play, with all the cables you need already included with each e-series fixture. You can find more information on how to connect your fixtures to our controller here: Single Bus vs. Repeater Bus. The manual also describes how you can make bespoke cables for any length. Different lengths of control cables are also available as original Gavita accessories.
The wiring system is plug-and-play, with all the cables you need already included with each e-series fixture. The manual also describes how you can make bespoke cables for any length. Different lengths of control cables are also available as original Gavita accessories.
The mounting of the controller in a bracket makes it easy to mount. Two screws are all you need to install the mounting bracket, the controller clicks right in. This also enables you easy access to the wiring at the bottom of the controller.
Safe
The most important and valued safety features on the Master controller are the temperature safety features: Your lamps will automatically dim when your climate control is no longer able to maintain the correct temperature, or will even shut down your lamps when a maximum temperature is reached, safeguarding your crop. These features have save many a crop already!
The control signal is a safe analog low voltage signal, and the controller is protected from signal shortcuts in the wiring. Wiring faults do not kill your controller.
Flexible
Whether you control 2 fixtures of 400: the Master Controller EL1 will do the job, when adding the booster modules you need. Standard, the EL1 output can steer 40 fixtures. For large rooms or distant placement we have temperature probes with a long lead available.
Sexy
The anodized aluminum extrusion housing is rugged and compact. No more standard grey plastic installation boxes with cluttered buttons and lights: the controller is compact, clean and some even find it sexy.
